S680-Time attendance, access control system

S680 is an RFID Time Attendance and Access Control Terminal with 3.5’’ TFT LCD.

With the adoption of the brand new firmware and the latest core board platform, S680 perfected its user-friendly interface and identification speed, it can also control the door and connect with 3rd party electric lock, door sensor, and exit button, etc.

iclock700 Device

Time Attendance Devices


Remarkable User Experience

  • Intuitive and stunning UI design.
  • Interface operation adopts modularized hierarchical design.
  • Simpler, better and more logical.
  • Great user interactivity.

Enhanced Features and Performance

  • Multi-languages.
  • Data backup and retrieve.
  • Chip encryption for firmware protection.

Excellent Expandability

Easy to extend functions and customize customers’ requirements.

Specifications

ID Card Capacity10,000
Record Capacity50,000
Display 3.5-inch TFT Screen

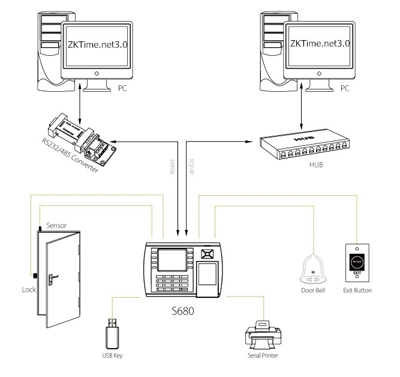

Communication TCP/IP, RS232/485, USB (host and client)
Standard Functions D Card, Workcode, SMS, DST, Self-Service Query, AutomaticStatus Switch, Scheduled-bell, Photo ID, Anti-passback
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Optional FunctionsMifare/HID, GPRS, Wi-Fi, 3G, Webserver, ADMS, Multiple Verify Mode, External Printer
Wiegand SigalInput & Output
SoftwareZKTime.Net 3.0
Power Supply DC 12V 1.5A
Verification Speed≤ 1 Sec.
Operating Temp0°C- 45°C
Operating Humidity20% - 80%
Dimension204.99×145.00×47.45mm (Length×Width×Thickness)

Configuration


iClock700

What’s in the Box


S680


Back Plate


Power Adapter


1.5m USB cable


Screws and Holders
(ZKTime 5.0)


Mounting paper


Wires
