ZK IN01 A - Time Attendance solutions

IN01-A is a 3-inch TFT screen Attendance & Access Control Terminal. Adopting the new user-friendly firmware and latest core-board improves performance, accelerates identification speed and has more expansibility for various customization requirements. What's more, the user-friendly interface brings you a new experience. Built-in 2000mAh backup battery can eliminate the trouble of power failure. RS232/485, TCP/IP, USB-host and optional Wi-Fi, GPRS ensure a smooth data transmission between device and PC.

The IN01-A has access control interface for Wiegand-in, Wiegand-out, door lock, alarm and bell.

iclock700 Device

Time Attendance Devices

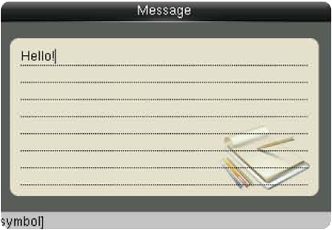

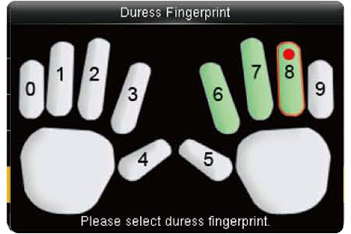

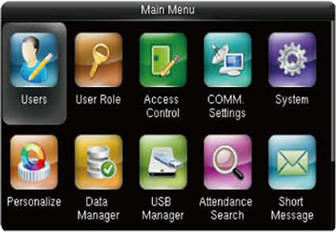

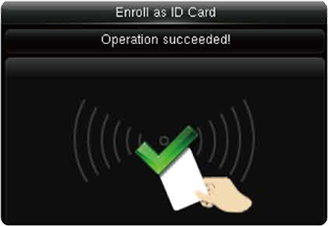

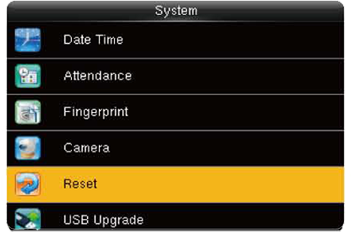

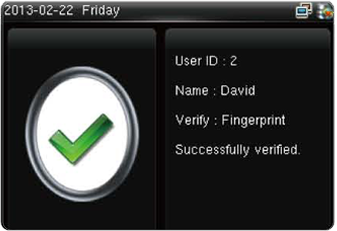

Remarkable User Experience

  • Intuitive and stunning UI designed with the most popular and internationalized element.
  • Interface operation adopts modularized hierarchical design. Simpler, better and more logical.
  • Great user interactivity.

Enhanced Features and Performance

  • Multi-languages.
  • Data backup and retrieve.
  • Advanced User ID consisted of letters and numbers.
  • Chip encryption for firmware protection.
  • Faster matching speed: Less than 0.5 second.
  • Optional integrated Wi-Fi/GPRS.

Excellent Expandability

Easy to extend functions and customize customers' requirements.


Access Control Interface

For wiegand in and out, door lock connection, alarm and bell.


Specifications

Fingerprint Capacity 8000
ID Card Capacity 10,000 (Optional)
Record Capacity 200,000
Display 3.5-inch TFT Screen
Communication RS232/485, TCP/IP, USB-host/client
Standard Functions Workcode, SMS, DST, Webserver, Scheduled-bell,
Self-Service Query, Automatic Status Switch,
Photo ID, Multiple Verify Mode,T9 Input, Anti-passback,
Camera, Built-in battery
Access Control Interface 3rd party electric lock, door sensor, exit button, alarm, and Door Bell
Wiegand Sigal Input & Output
Optional Functions ID/Mifare/HID, External Printer, ADMS, WIFI, GPRS, 3G
Software ZKTime.Net, ZKTime 5.0
Power Supply DC 12V 3A
Verification Speed ≤0.5 Sec.
Operating Temp. 0°C - 45°C
Operating Humidity 20% - 80%
Dimension 225.2×166.0×46.3mm (Length×Width×Thickness)
Net Weight 2.05 kg

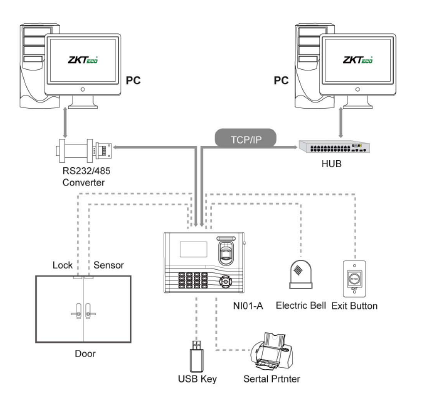

Configuration Device

Configuration

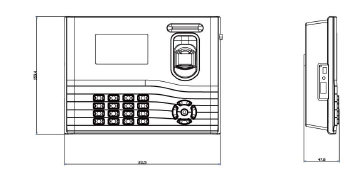

Dimension Device

Dimensions

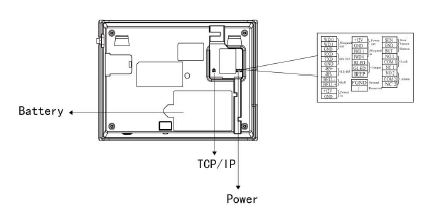

Interface Device

Interface

Package List


IN01 - A


Back Plate


Screws and Holders


Software CD (ZKTime 5.0)


USB Cable


Power Adaptor


Mounting Paper


Lines For Access Control Interface
