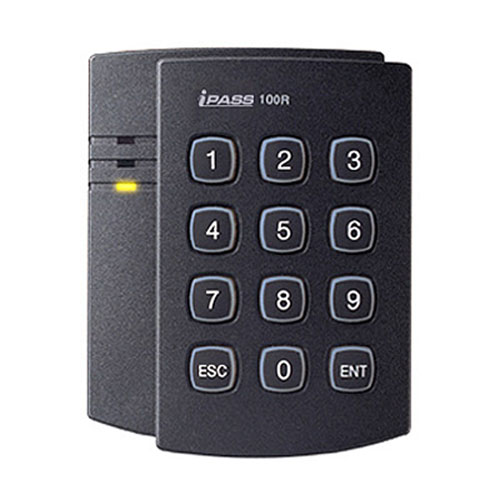

| MODEL | IP100R |
|---|
| CPU | Dual 8bit Microprocessor |
| Memory Module |
| Program Memory |
| Data Memory |
|
|
| 20KByte ROM |
| 2KByte EEPROM |
|
| User | 512 Users |
| Read Range | IPK50: Up to 2 inch (5cm) IPC80 / IPC170: Up to 4 inch (10cm) |
| Reading Time (Card) | 30ms. |
| Power / Current | DC 12V / Max.200mA |
| External Reader Port | 1ea (26bit Wiegand) |
| Communication | RS232 |
| Input Port | 5ea (Exit Button, Door Sensor, Aux#1, Aux#2, Aux#3) |
| Output Port |
|
2ea (2 FORM-C Relay Output
(COM, NO, NC) / DC12V~18V, Rating Max.2A)
|
| 1ea (Chime Bell Output / DC5V, Rating Max. 500mA) |
| 1ea (TTL Output / DC5V, Rating Max.20mA) |
|
| Keypad | 12 Key Numeric Keypad with Back Lighting |
| LED Indicator | 3 Array LED Indicators (Red, Green and Yellow) |
| Beeper | Piezo Buzzer |
| Operating Temperature | -35° to +65°C ( -31° to +149°F ) |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Color | Dark Pearl Gray |
| Material | Polycarbonate |
| Dimension(W x H x T) | 3.4” x 3.94” x 1.22” (87mm x 100mm x 31mm) |
| Weight | 210g (0.46lbs) |
| Certification | UL, FCC, CE, MIC, RoHS |
