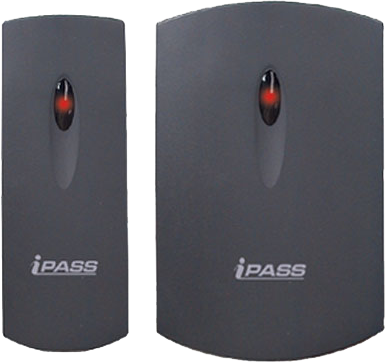

| MODEL | IP10 | IP20 |
|---|---|---|
| Read Range |
IPK50: Up to 2 inch (5cm) IPC80 / IPC170: Up to 4 inch (10cm) |
|
| Reading Time (Card) | 30ms | |
| Power / Current | DC 12V / Max.180mA | DC 12V / Max.350mA |
| Input Port |
2ea : External LED Control External Buzzer Control |
|
| Output Format | 26bit Wiegand(default), RS232 and ABA Track II (optional) | |
| LED Indicator | 2 Color LED (Red and Green) | |
| Beeper | Piezo Buzzer | |
| Operating Temperature | -35° to +65°C ( -31° to +149°F ) | |
| Operating Humidity | 10% to 90% relative humidity non-condensing | |
| Color | Dark Pearl Gray | |
| Material | Polycarbonate | |
| Dimension (W x H x T) | 1.82” x 4.81” x 0.87” (46 x 122 x 23mm) | 3.4” x 3.94” x 1.22” (87 x 100 x 31mm) |
| Weight | 160g (0.35lbs) | 185g (0.41lbs) |
| Index of Protection | IP65 / IP66 | |
| Certification | UL, FCC, CE, MIC, RoHS | |
