| MODEL | FGR006 |
|---|
| CPU | 32bit ARM9, Dual 8bit Microprocessor |
| Memory Module |
| Finger Print Module |
| Controller |
|
| Program Memory |
| Data Memory |
| Program Memory |
| Data Memory |
|
|
| 1MByte Flash Memory |
| 1MByte / 2MByte / 4MByte Flash Memory |
| 128KByte Flash Memory |
| 256KByte Flash Memory |
|
| Fingerprint User | 1,000 / 2,000 / 4,000 Fingerprint Users |
| Fingerprint Templates Size | 800Bytes for 2 Fingerprint Templates |
| Read Range | IDK50 / IMC125 : Up to 2 inch (5cm)
IDC80 / IDC170 : Up to 4 inch (10cm) |
| Reading Time (Card) | 30ms. |
| Verification Time | Less than 1sec. |
| Identification Time | Less than 2sec. |
| Power / Current | DC 12V / Max. 250mA |
| External Reader Port | N/A |
| Communication | RS232 / RS422 / RS485 (Max.32ch),
Ethernet (External Ethernet Module required) |
| Baud Rate | 9,600bps (default) / 4,800bps / 19,200bps / 38,400bps (selectable) |
| Input Port | 2ea: External LED Control, External Buzzer Control |
| Output Port | 3ea: Error-Output , OK-Output, Temper-Output (Open Collector Output) |
| Output Format | 26bit Wiegand (default)
ABA Track II (optional) |
| LED Indicator / Beeper | 3 Array LED Indicators (Red and Green) / Piezo Buzzer |
| Operating Temperature | -20° to +60°C (-4° to +140°F) |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Color / Material | Pearl Dark Gray and Light Gray / Polycarbonate |

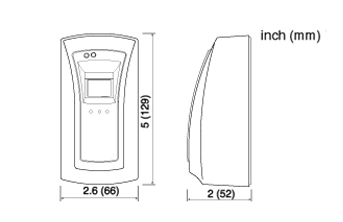

| Dimension (W x H x T) / Weight | 2.6” x 5.1” x 2.0” (66mm x 129mm x 52mm) / 259.5g (0.57lbs) |
| Certification | FCC, CE, KCC, RoHS |
