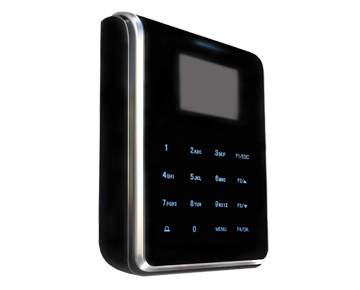

Magic Smart 8800 is a complete solution for Card Reader and Controller. Magic Smart 8800 with built-in TCP/IP connection allows the device to connect to the server through LAN and WAN. Besides that, the integration with various card types, such as Proximity, Smart Card (Mifare), HID Proximity and HID iClass will suit any card solution needed by end users. And the built-in controller with selectable Wiegand In and Out format will support connection and integration with any external readers and controllers Magic Smart 8800 also provide Smart Card encryption, to give better protection, so that only registered and encrypted cards can be read by the device.
| User Capacity | 30.000 cards |
| Log Buffer | 50.000 logs |
| Communication | RS 232, RS 485, TCP/IP, USB, Wiegand In & Out, support WAN |
| USB | Support USB 2.0 |
| Output | Relay 3A |
| Keypad | Touch Keypad with backlight and support numerical & alphabetical |
| LCD | Animation & Iconic menu (4 lines x 16 characters) |
| Card Type | EM Proximity Card, Mifare Smart Card, HID Proximity & iClass |
| Operating Power | 12V/400mA |
| Temperature | 0o-65o C |
| Humidity | 10-90% |
| Size | 12.8 x 9.5 x 3.1 cm |
| Additional | Web Based Server |
| Resolution | 500dpi |
| Capture Image Size | 356 x 292 pixels |
| Display Image Size | 248 x 292 pixels |
| Extraction Image Size | 248 x 292 pixels |
| Sensing Area | 13 x 15.2 mm |
| Scanner | High Quality Optical Sensor |
| FAR (False Acceptance Ratio) | 0.001% |
| FRR (False Reject Ratio) | 0.1% |
| ESD (Electro Static Discharge) | 15kV |
| Verification Time | Less than 1 sec |
| Identification Time | Less than 1 sec |
