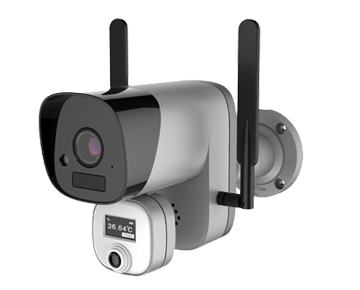

Zion ZT-01 is an intelligent camera that uses thermal imaging technology and network processing system to perform high speed temperature measurement, screening, recording and real-time surveillance video. its a complete epidemic prevention solution integrating body temperature screening and pre-warning monitoring, which can realize on-site alarm of body temperature abnormality
| Model: Zion ZT-01 | ||
|---|---|---|
| Thermal module | Thermal imagery sensor | 1024PIXS |
| Thermal Lens | 5mm | |
| Temperature distance | 0.2-1.0 meters | |
| Temperature accuracy | ± 0.3 ℃ | |
| Thermal pixel time constant | < 0.4ms | |
| Temperature angle | 32 degrees left and right, 32 degrees up and down | |
| Hardware | Processor | HI3516EV200 |
| Image sensor | 2 Megapixels, 1920*1080 CMOS Sensor | |
| Frame Rate | 1~30fps | |
| Min illumination | Color : 1.5Lux; W/B : 0 Lux with IR LED ON | |
| Lens/Visual Angle | 3.6mm/100° | |
| Apply system | Software version IOS7.1, Android 4.0 and above | |
| Operating system | Linux | |
| Video storage | support max 128G TF Card | |
| Audio compression | G.711A | |
| Audio input | built-in 38dB microphone | |
| Audio output | Built-in speaker | |
| Wireless | Wifi 802.11b/g/n wireless network | |
| Network interface | 1 RJ45 10M/100M Ethernet port | |
| Detection | High body temperature, >37.3 | |
| Battery | 2pcs 3000ma 18650 battery | |
| General specification | power | Maximum power < 5W, 5V USB Power supply |
| Product size | 216mm*63mm*114mm | |
| Package size | 254mm*150mm*140mm | |
| weight | 735g | |
