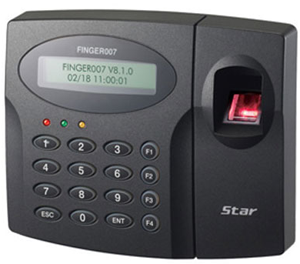

Advanced Biometric and Smart Card Time Attendance in Dubai
| MODEL | FINGER007SRB (VA.1.0 and above) | FINGER007SRB (V9.6.0 and below) |
|---|---|---|
| CPU | 32bit Microprocessor and Dual 8bit Microprocessor | 32bit ARM9 and Dual 8bit Microprocessor |
| Fingerprint User | 10,000 ~ 50,000 (Default 10,000) | 20,000 |
| Event Buffer | 10,000 ~ 50,000 (Default 50,000) | 30,000 |
| Fingerprint Templates Size | 800Bytes for 2 Fingerprint Templates | |
| Read Range | ISK50 / IHC80 / IMC135: Up to 2 inch (5cm), ISC80: Up to 4 inch (10cm) | |
| Verification Time | Less than 1 sec | |
| Power / Current | DC 12V / Max.300mA | |
| Resolution | 500dpi |
| Capture Image Size | 356 x 292 pixels |
| Display Image Size | 248 x 292 pixels |
| Extraction Image Size | 248 x 292 pixels |
| Sensing Area | 13 x 15.2 mm |
| Scanner | High Quality Optical Sensor |
| FAR (False Acceptance Ratio) | 0.001% |
| FRR (False Reject Ratio) | 0.1% |
| ESD (Electro Static Discharge) | 15kV |
| Verification Time | Less than 1 sec |
| Identification Time | Less than 1 sec |
